9A CW Touch Paddle
33 Euro
43 USD

Prodaja / For sale

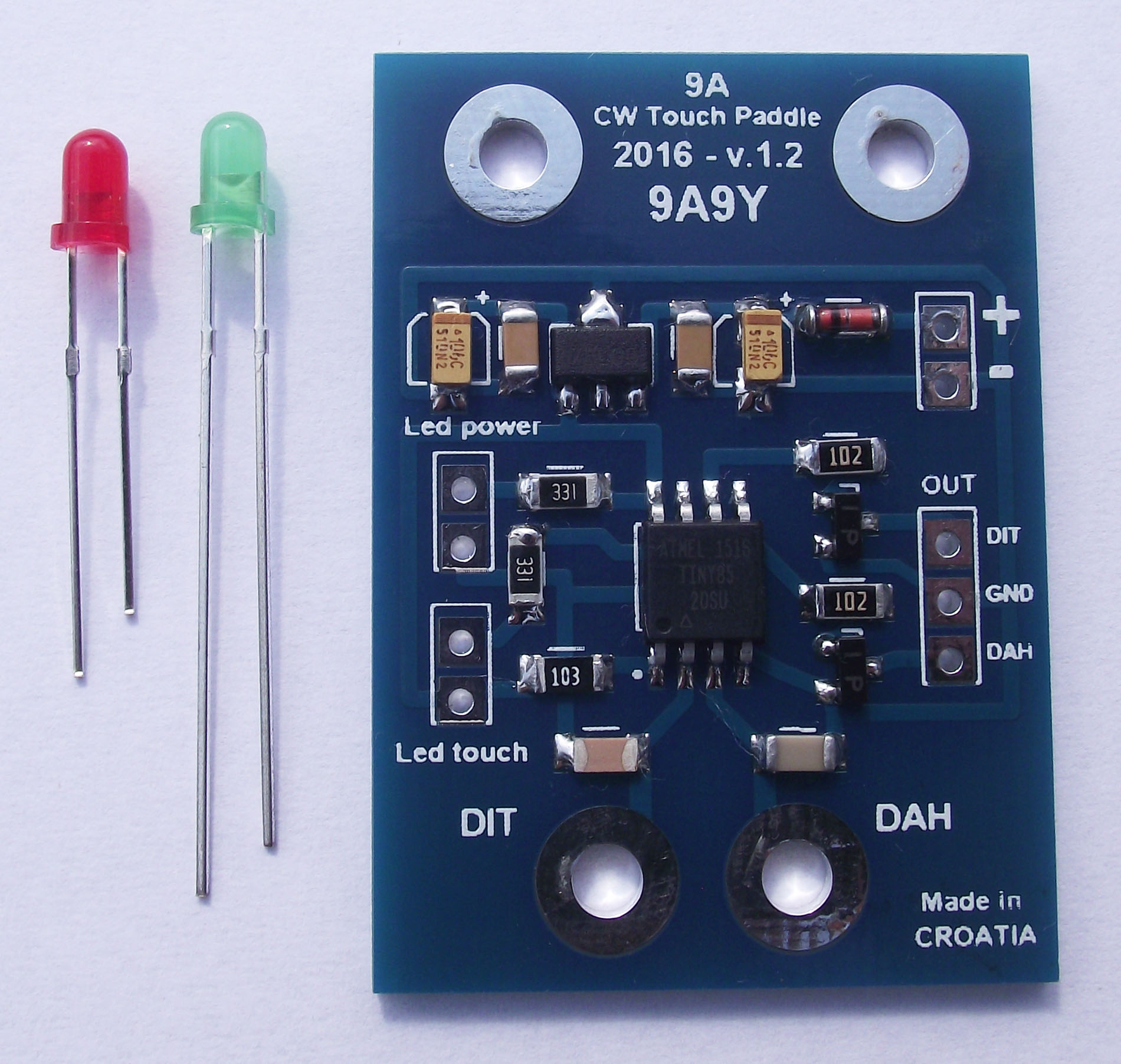

9A CW Touch Paddle
9A CW Touch Paddle
Size of PCB is:
W: 32 mm
L: 42 mm
H: 5 mm (with components)

Specifications of the 9A CW Touch Paddle:

- The left touch is the point (dot), right touch is line (dash)
- Squeeze function
- Low power (requires a voltage from 6V to 12V (13.8V), current consumption is 13 mA in standby mode and 30 mA in the work)
- LED control when CW touch paddle is on
- LED control for touch or buzzer sound
- Works on almost all radios
- For contacts can be used any metal (even in plastic, painted, etc.)

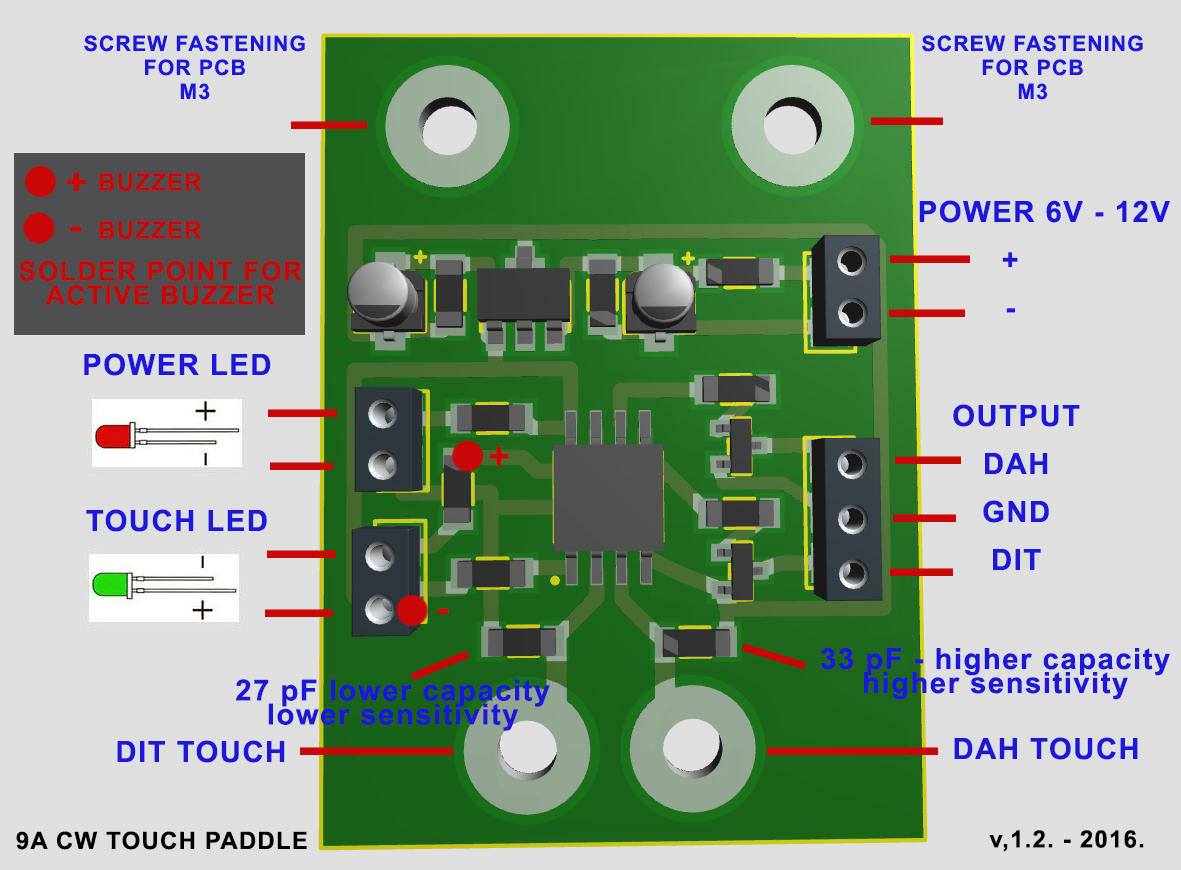

- Sensitivity of touch can be adjusted very easy with changing of 2 capacitors (when needed)
- RF immunity
- No moving parts
- Satisfied users in over 28 countries


Specifikacije 9A CW Touch Paddle:

- Lijeva ručica je točka a desna crta
- Squeeze funkcija
- Mala potroššnja (napon napajanja od 6 do 12V (13.8V), potroššnja struje u mirovanju je 13 mA a u radu je 30 mA)
- LED kontrola kada je uređaj uključen
- LED kontrola za dodir ručica ili buzzer za zvuk
- Radi na svim radio predajnicima
- Za ručice se mogu upotrijebiti svi metali (čak i presvučeni sa plastikom ili obojani, itd.)
- Osjetljivost dodira se lako podeššava samo sa promjenom 2 kondezatora
- Otpornost na RF smetnje
- Bez pokretnih dijelova
- Zadovoljni korisnici u preko 28 zemalja

Video: 9A CW Touch Paddle 1 9A9Y
             9A CW Touch paddle 2 WK4WC
             9A CW Touch Paddle 3 M0XYZ


33 €Euro
43 USD
(free shipping worldwide)

Used in countries:

Croatia - 9A
Germany - DL
Japan - JA
U.S.A. - K
Austria - OE
France - F
Slovenia - S5
Italy - I
Netherlands - PA
Finland - OH
Romania - YO
Spain - EA
England - G
Hungary - HA
New Zealand - ZL
Philippines - DU
Sweden - SM
Australia - VK
Canada - VE
Norway - LA
South Korea - HL
Bosnia and Herzegovina - E7
Portugal - CT
Switzerland - HB
Belgium - ON
Czech Republic - OK
Luembourg - LX
Brazil - PY



Napomena:

9A CW Touch Paddle je isproban i provjeren, nije upotrebljavan.
Ne odgovaram za nestručno rukovanje.
9A CW Touch Paddle se prodaje kao na slici, sa 2 LED diode 3 mm, (bez kutije, prekidača i sl.)
Radi se o privatnoj prodaji.
U cijeni su uračunati pošštanski trošškovi za slanje u sve zemlje svijeta.

Note:

9A CW Touch Paddle is a tried and tested, it is not used.
Not responsible for improper use.

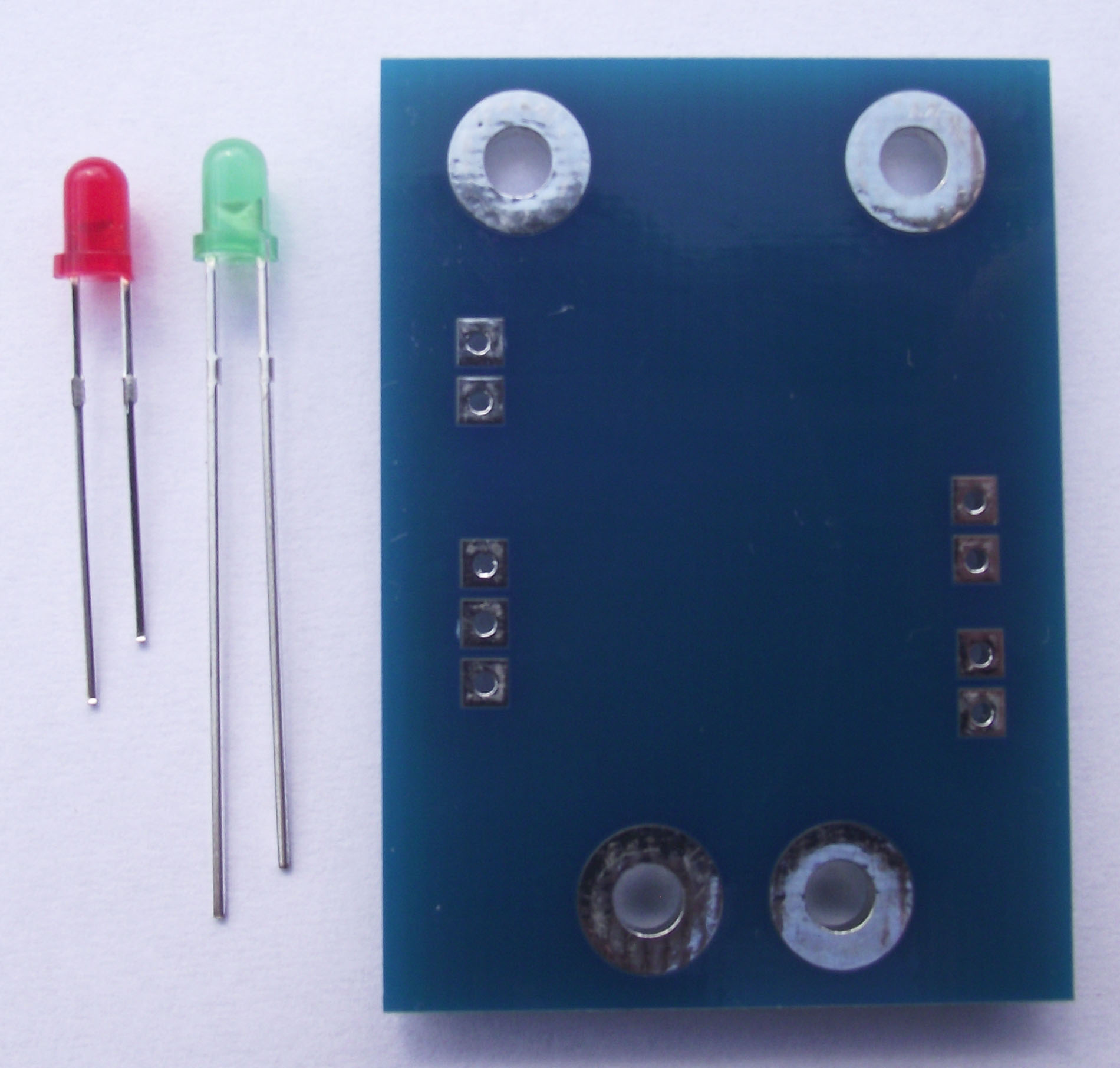

9A CW Touch Paddle is sold as in the picture, with 2 LED diodes 3 mm, (no boxes, switches and other parts.)
It's a private sale.

Free shiping worldwide.
